3D Model
New School Building
We provided a full set of erection and shop drawings for a new building at Parkdale Secondary College. It was great to help provide a new facility for the school community and see our hard work make this project possible.
Scope of Works

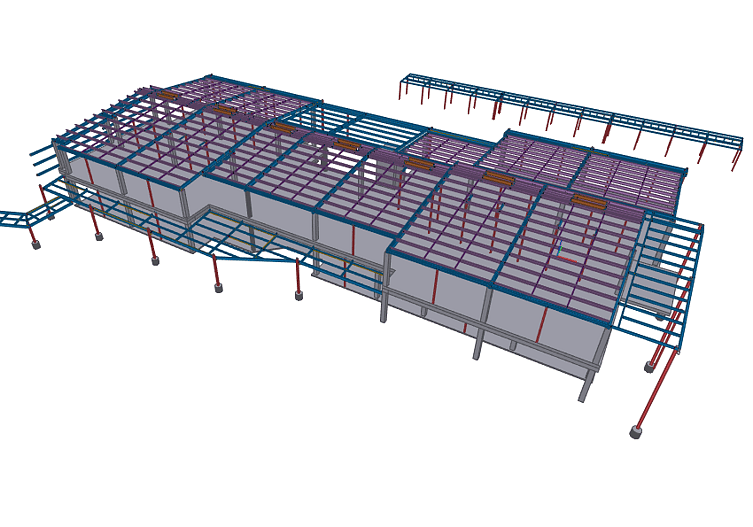

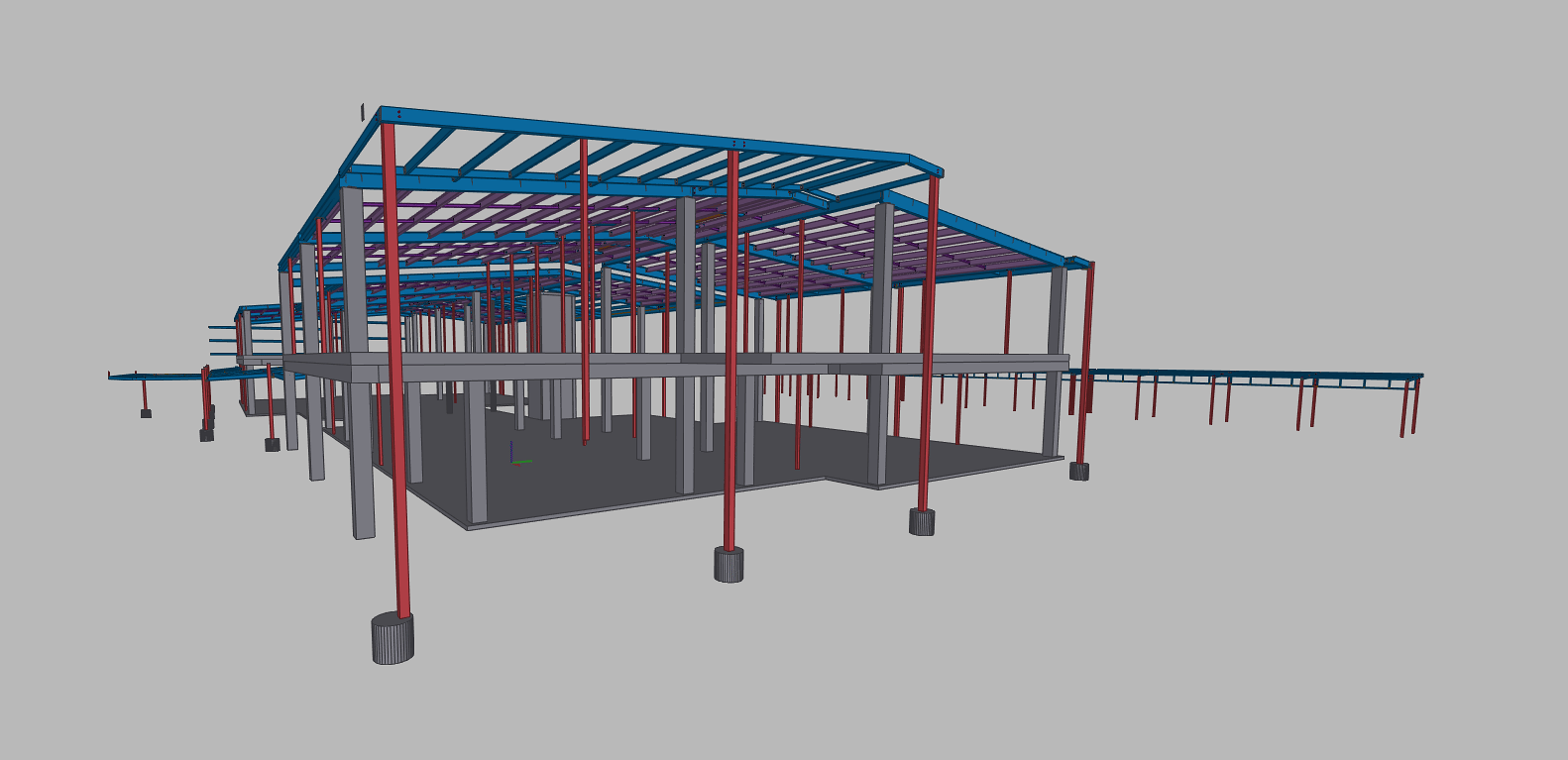

- IFC Model

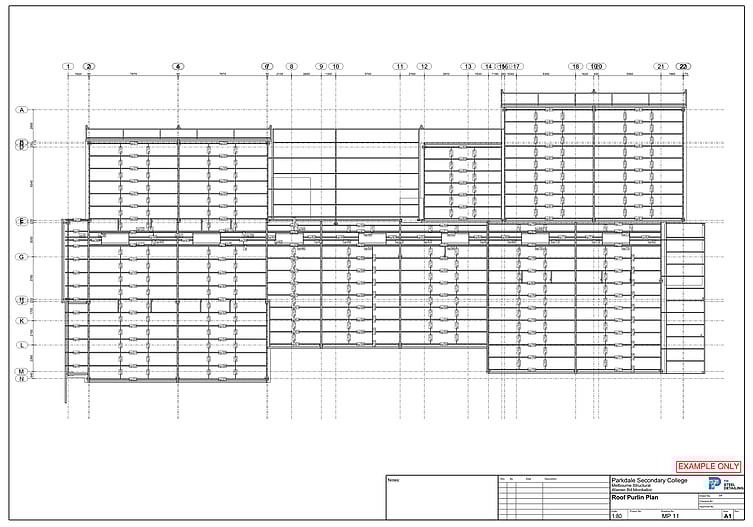

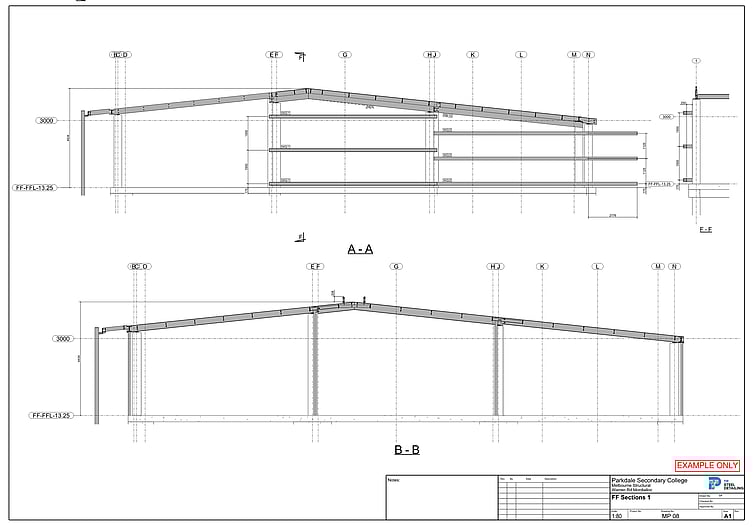

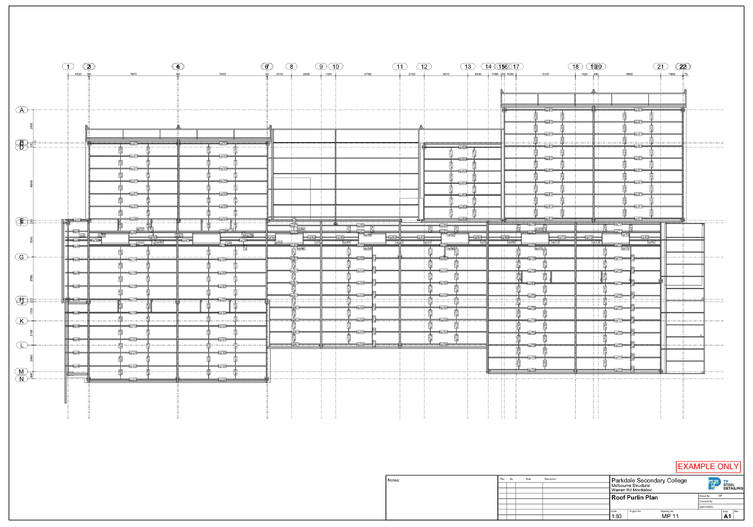

- Marking Plans, elevations and isometric

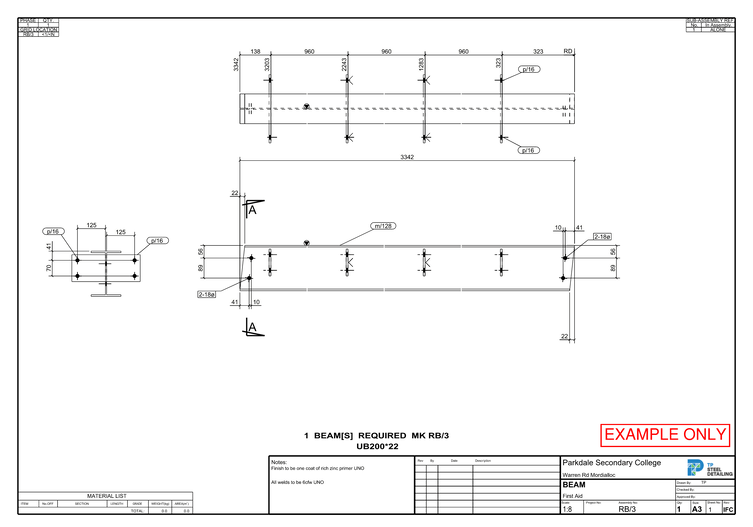

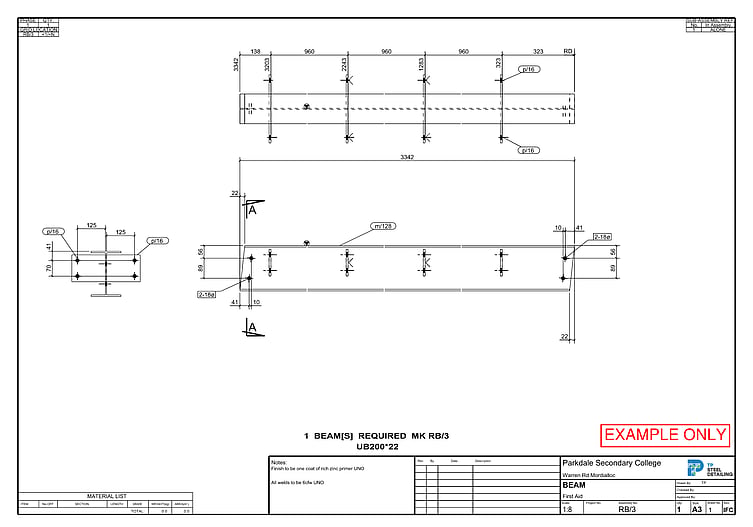

- Assembly (Fabrication) Drawings

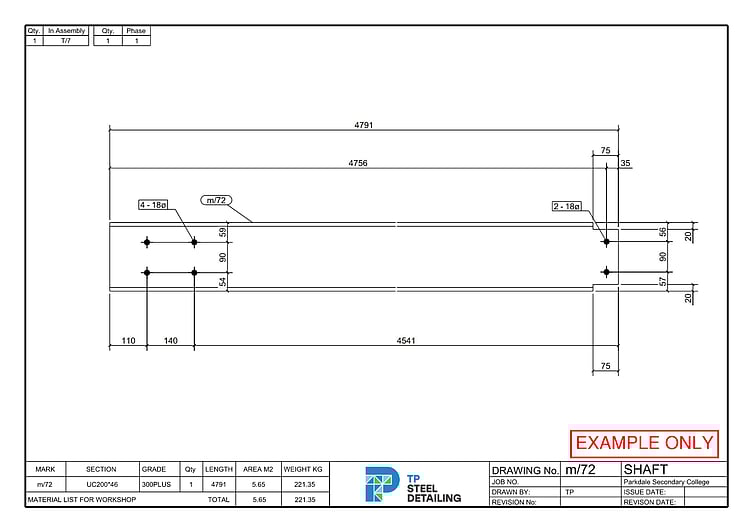

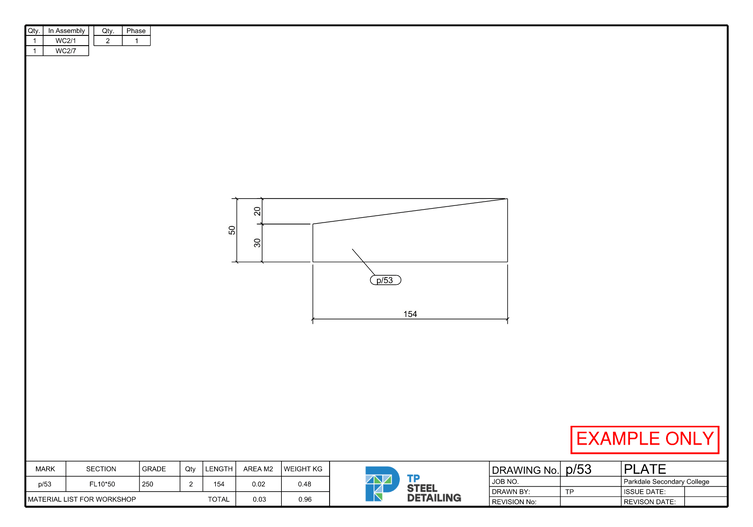

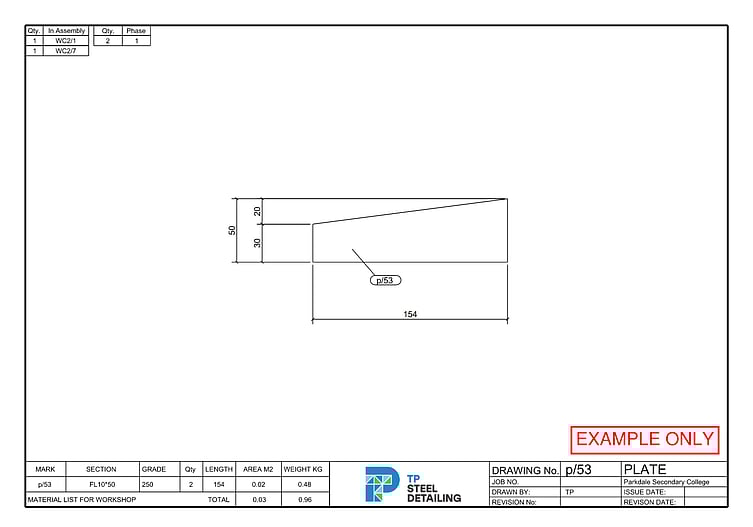

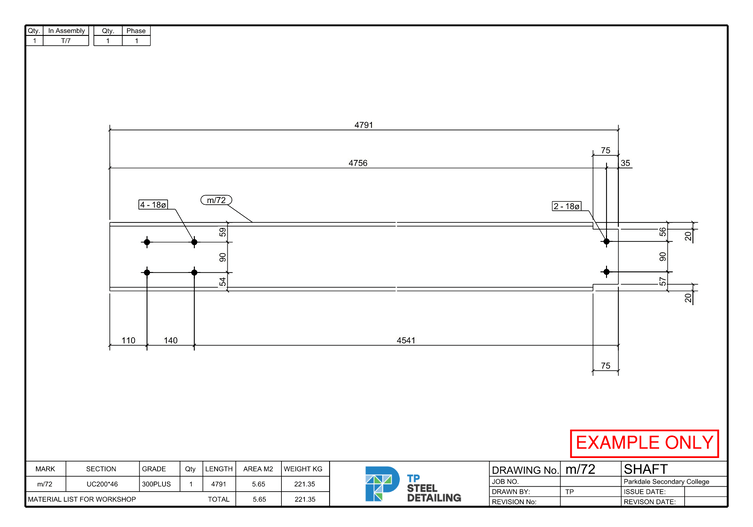

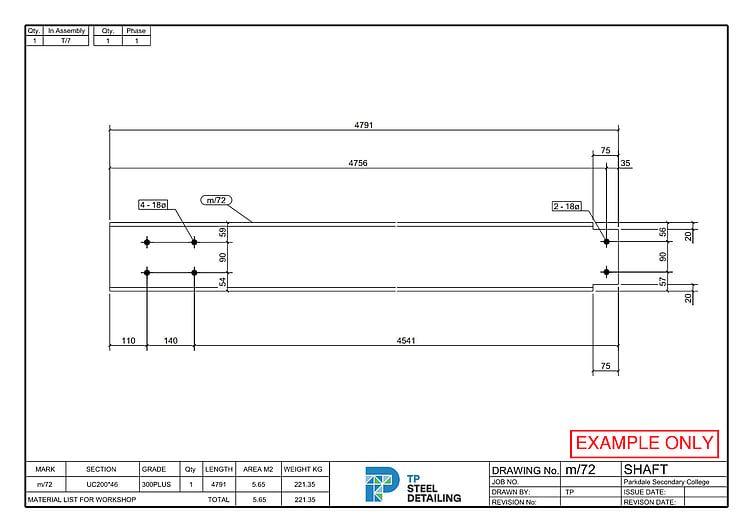

- Single Part Drawings (Shafts and Plates)

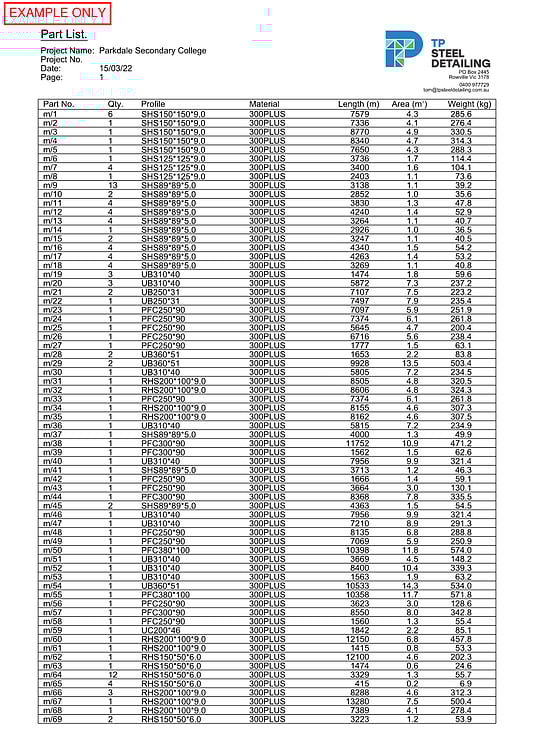

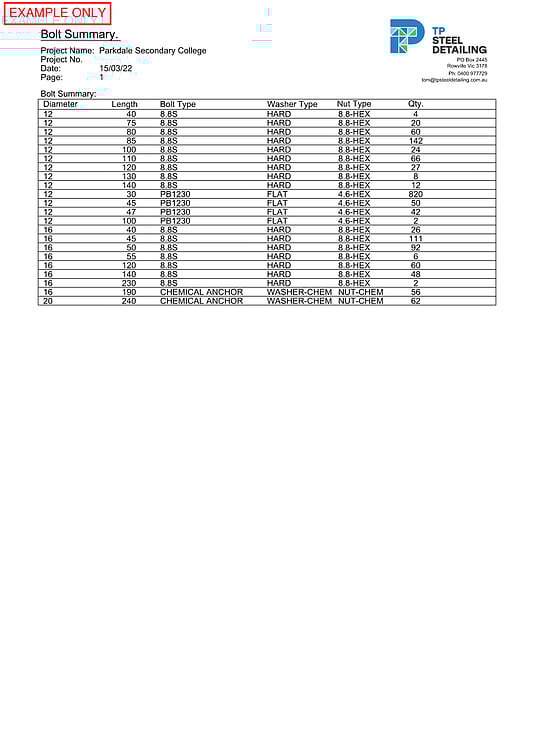

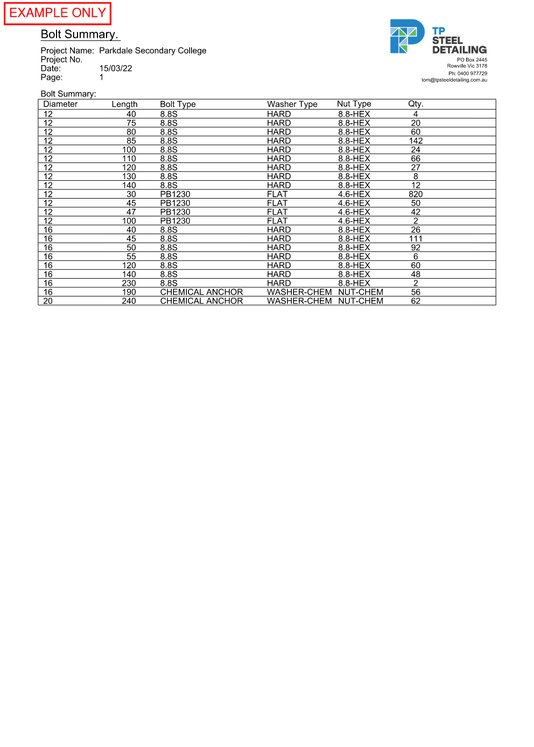

- Bolt List

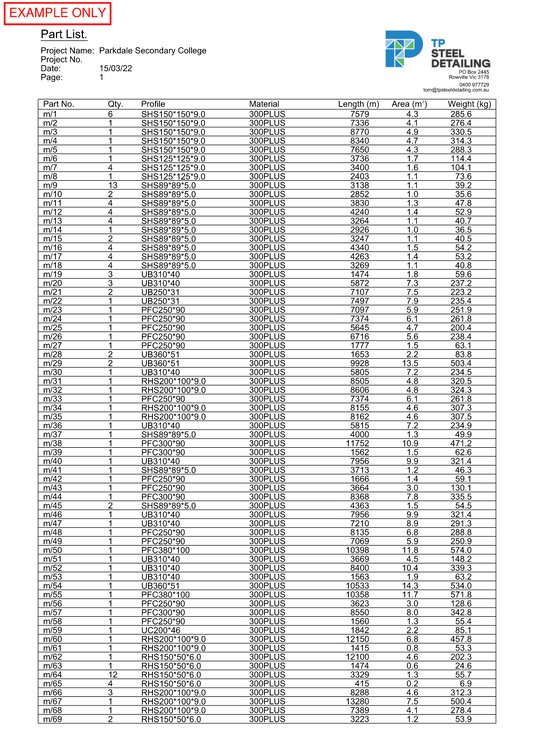

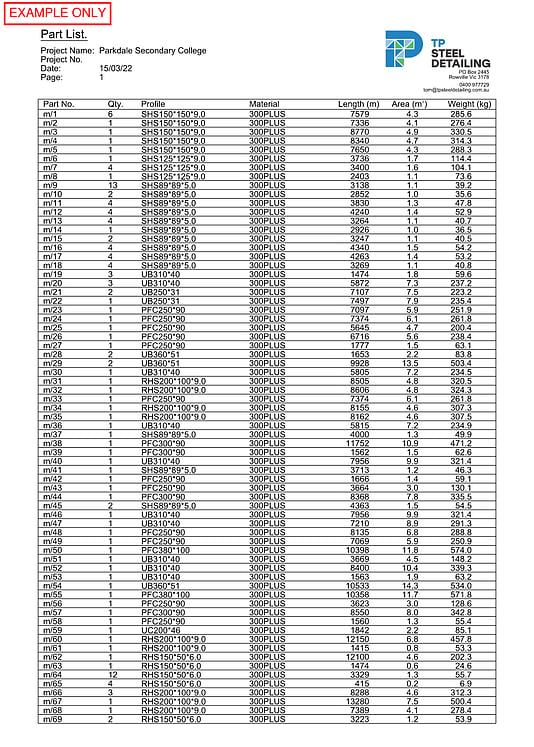

- Material Lists (for ordering)
- Site Measure
Back to shop drawings main page
Our Services
- Structural steel detailing
- Architectural steel detailing
- 3D modelling through Tekla Structures and Solidworks
- Erection drawings
- Shop Drawings
- Single part drawings (Plate and shaft drawings)
- Material and bolt lists
- NC and DXF files for CNC processing
- IFC model files
